QY-LCF6000-2580G20
Segonde Solisyon Fen Segonde Solisyon Pou 6Kw Laze Coupe Machin QY se grav sou yon sel bagay: fe pi bon koupe machin metal pou kliyan machin nou an Avantaj Hy-Entelijans: pwodiksyon aktyel la ka entewonp nan nenpot ki le ak entespeksyon nan pwodiksyon an nan lot desen. ou...
Pwodwi Entwodiksyon
Solisyon fen segonde
Espesifikasyon pou 6Kw Laze Coupe Machin
QY se grav sou yon sel bagay:
fe pi bon metal koupe machin pou kliyan
(一）、Prensipal kolokasyon elektrik | ||
Non Pati & Deskripsyon | Remak | |
6000W Laze | IPG（Alman） | alman mak |
Koupe tet | PresitOtofok | mak alman |
Diminye | Choupon | Japon |
Chiller dlo | Pwoteksyon sou-koule, estabilite tanperati ± 0.5°C, vet de-sik dlo-refwadi machin, titan evaporasyon kontwol fret | Wuhan, Lachin |
Mekanik sistem kondwi | ROUYE,Etaje> pinyon, Kalite Bevel | mak alman |
Gid Tren | Hiwin | Taywannmak |
Kontakte AC | Schneider | Mak Frans |
Solenoid Valv | ayewopo | Taywann |
Oto-Detekte | Presizyon ±0.1mm | Lachin |
PC Sistem | Endistriyel kontwol | EVOC, Taywann |
X aks mote | EtekatMote | Yaskawa, Japon |
Yo aks mote | Ethercat mote, kondwi doub | Yaskawa, Japon |
Z aks mote | Mote Ethercat | Yaskawa oswa Fuji, Japon |
Pyes elektrik | Schneider | Mak Frans |
Kontwole | Kontwole: FScut8000 (sipote lang angle, dosyefomate.dxf, PLT, Gerber, AI ak sou sa) Koupe lojisyel:Hypcut | Zanmi yoLachin |
Nidifikasyon | CypNest desen pwosesis, nidifikasyon, jenerasyon chemen zouti ak transmisyon travay alekaelatriye | Zanmi yoLachin |
Tab | Fe egzateman fe tab ak di, tanperati ak tretman rkwir pou asire pa gen okenn defomasyonnan 20 ane 'pwodiksyon | QY, Lachin |
Paramet teknik | ||
1 | Laze Longueur | 1070nm |
2 | Maksimom pouvwa | 6000W |
3 | Max Akselerasyon | 1.5G |
4 | Konsomasyon pouvwa | 35Kw |
5 | Max vites | Single aks vites ≤120m / min
Konpleks vites ≤160m / min |
6 | Min Linewidth | 0.15mm (pou materyel ki gen epese mwens pase 0.4mm), depann de epese a fey |
7 | Koupe epese | MS: max 25m, pwodiksyon 25mm;
SS: max 20mm, pwodiksyon 16mm; |
8 | Koupe dimansyon | Echanj tab ak kouveti pwoteksyon plen
1500 * 3000mm
2500 * 6000mm
2500 * 8000mm |
9 | Koupe Presizyon Tablo mekanik： ±0.05mm | |
10 | X, Y repete pwezante presizyon： ±0.03mm | |
11 | Ekipman pou pouvwa: Twa-faz 5 fil Elektrik AC 380V±5%，50Hz / 60HZ±1% | |
  | Chanm ekondisyone:
ak tout pati elektrik ak sous laze andedan,
izolasyon chale、pousye izolasyon、Dife Prev
ki pral kenbe machin ki ap travay touswit menm 24hours kontinye ap travay, ak lavi pwolonje nan elektrikPati | |
   | Siveye sistem kontwol
Pou bon dedomajman pou sekirite operate a
chak zon kwen mouri ka kontwole pandan koupe ale, pwosesis la kapab kontwole.
| |
 | WIFI Remote Kontwol Sistem
Vit transmet: fasil soti nan biwo PC nan koupe machin, ekonomize tan
Pa diminye konpayi asirans mitan, yo ap diminye risk viris
Pratik pou sevis apresyal | |
gen pot drapo (2 chak met) yo louvri otomatikman ki baze sou
sou pozisyon mouvman gantry
|

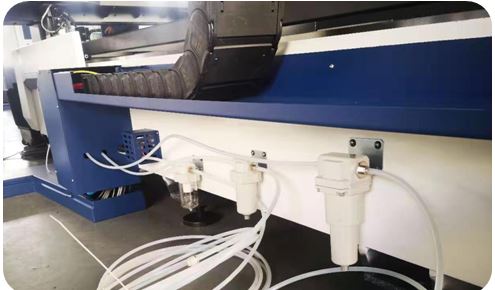

Twa fason gaz kontwol Separe O2, N2 ak le |
Pa gen defomasyon nan pwodiksyon 20 ane ' Prensipal laankadremanadopte yon gwo bout bwa gantry estrikti, akTabkabann sete pwodwi pa soude pa plak asye, epi estres la se elimine pa tretman chale T6, pou fos, rijidite, akselerasyon kondwi servo ak deslerasyon ak nimerik kontwol sistem yo tre matche
Pa gen defomasyon nan pwodiksyon 20 ane ' |  |
Avantaj machin nou an
 | Hy-vizyon pou repwodiksyon
*Repwodiksyon vizyel
* Save materyel *vit lokalize |
 | I-Zekle
*vit ou pese ko ou
* pa gen okenn pese pese |
Hy-Entelijans:
pwodiksyon aktyel la ka koupe nan nenpot ki le ak entespese nan pwodiksyon an nan desen lot. ou kapab
tou chanje tounen travay pwosesis unfinied nan nenpot ki le yo kontinye pwodiksyon. Optimize pwodiksyon ekipman an
plan epi redwi D 'a nan fragmantasyon
Otomatikman sove enfomasyon kraze
Si li se echek pouvwa aksidan, oswa atifisyelman sispann chanje an.
Pou nenpot desen inifye, sistem lan pral otomatikman anrejistre tout done nan moman sa a nan enteripsyon nan
desen. Le desen an li anko, eta a anvan se enteripsyon an otomatikman restorasyon.
Koupe paramet soti nan solisyon 6Kw | |||||
Materyel | epese | Gin gaz | Vites (m / min) | Koupe pouvwa (W) | bouch |
madmwazel | 1 | O2 | 8.5-10 | 900-1200 | 1.0D |
2 | 6.0-7.8 | 1000-1500 | 1.0D | ||
3 | 3.3-4.8 | 1000-3000 | 1.0D/1.2D | ||
4 | 3.3-4.0 | 3000-4200 | 1.2D | ||
5 | 3.0-3.7 | 3600-4500 | 1.2D | ||
6 | 2.7-3.5 | 3800-4500 | 1.2D | ||
8 | 2.1-2.7 | 3800-4800 | 1.2D | ||
10 | 2.0-2.4 | 4000-6000 | 1.2D | ||
12 | 1.6-2.2 | 4000-6000 | 1.2D | ||
14 | 0.9-1.5 | 6000 | 1.4D | ||
16 | 0.8-1.4 | 2300-6000 | 1.4D oswa 4.0D | ||
18 | 0.7-1.2 | 2500-6000 | 1.4D oswa 4.5D | ||
20 | 0.6-0.9 | 2600-6000 | 1.4D oswa 4.5D | ||
22 | 0.5-0.6 | 2800-6000 | 1.4D oswa 4.5D | ||
25 | 0.4-0.55 | 3300-6000 | 1.4D OSWA 5.0D | ||
1 | N2 | 30-50 | 4000-6000 | 1.5 | |
2 | 15-20 | 4000-6000 | 1.5S oswa 2.0S | ||
3 | 9.0-15 | 4000-6000 | 1.5S oswa 2.0S | ||
4 | 7.0-10 | 5000-6000 | 2.0S oswa 2.5S | ||
5 | 6.0-7.5 | 5000-6000 | 2.0S oswa 2.5S | ||
ss | 1 | N2 | 40-60 | 4000-6000 | 1.5 |
2 | 30-42 | 4000-6000 | 1.5S oswa 2.0S | ||
3 | 13.0-19.0 | 6000 | 1.5S oswa 2.0S | ||
4 | 8.0-11.0 | 6000 | 2.0S oswa 2.5S | ||
5 | 6.5-8.0 | 6000 | 2.0S oswa 2.5S | ||
6 | 6.0-7.5 | 6000 | 2.5 | ||
8 | 3.4-4.0 | 6000 | 2.5 | ||
10 | 1.5-2.2 | 6000 | 3.0 | ||
12 | 1.3-1.8 | 6000 | 3.0S oswa 3.5S | ||
14 | 0.7-1.1 | 6000 | 4.0S oswa 4.5S | ||
16 | 0.65-0.9 | 6000 | 4.5 | ||
18 | 0.5-0.7 | 6000 | 4.5S oswa 5.0 | ||
20 | 0.45-0.6 | 6000 | 5.0 | ||
ss | 8
| Aeryen | 30-45 | 4000-6000 | 1.5 |
2 | 17-25 | 4000-6000 | 1.5S oswa 2.0S | ||
3 | 10.0-18.0 | 6000 | 1.5S oswa 2.0S | ||
4 | 8.0-11.0 | 6000 | 2.0S oswa 2.5S | ||
5 | 6.5-8.0 | 6000 | 2.0S oswa 2.5S | ||
6 | 5.5-7.0 | 6000 | 2.5 | ||
8 | 2.5-3.0 | 6000 | 2.5 | ||
ss | 10 | Aeryen | 1.8-2.3 | 6000 | 3.0 |
12 | 1.0-1.4 | 6000 | 3.0S oswa 3.5S | ||
14 | 0.65-0.9 | 6000 | 4.0S oswa 4.5S | ||
ss | 1 | O2 | 30-50 | 2000-3000 | 1.0D |
2 | 10.0-18.0 | 2000-3500 | 1.0D | ||
3 | 6.0-12.0 | 2000-3500 | 1.5D | ||
4 | 4.0-6.0 | 2500-4500 | 1.5D | ||
5 | 3.6-5.0 | 2500-4500 | 1.5D | ||
6 | 2.7-3.5 | 2500-4500 | 1.5D | ||
8 | 2.1-2.7 | 3000-4500 | 1.5D | ||
10 | 2.0-2.4 | 3500-5500 | 1.5D | ||
12 | 1.6-2.0 | 4000-5500 | 1.5D | ||
14 | 0.9-1.3 | 5000-6000 | 1.5D | ||
Kwiv | 1 | N2 | 35-50 | 4000-6000 | 1.5 |
2 | 17-25 | 4000-6000 | 1.5S oswa 2.0S | ||
3 | 8.0-12.0 | 6000 | 1.5S oswa 2.0S | ||
4 | 4.8-6.0 | 6000 | 2.0S oswa 2.5S | ||
5 | 2.7-3.5 | 6000 | 2.0S oswa 2.5S | ||
6 | 1.6-2.2 | 6000 | 2.5 | ||
8 | 1.3-1.8 | 6000 | 2.5 | ||
10 | 1.1-1.5 | 6000 | 3.0 | ||
12 | 1.0-1.4 | 6000 | 3.0S oswa 3.5S | ||
14 | 0.55-0.7 | 6000 | 4.0S oswa 4.5S | ||
16 | 0.3-0.45 | 6000 | 4.5 | ||
Kwiv | 1 | O2 | 25-35 | 6000 | 1.5 |
2 | 12.0-18.0 | 6000 | 2.0 | ||
3 | 10.0-14.0 | 6000 | 2.5 | ||
4 | 6.0-7.5 | 6000 | 2.5 | ||
5 | 4.0-5.0 | 6000 | 2.5 | ||
8 | 1.0-1.5 | 6000 | 3.0S oswa 3.5S | ||
Lafyev | 1 | N2 | 40-60 | 4000-6000 | 1.5 |
2 | 20-30 | 4000-6000 | 1.5S oswa 2.0S | ||
3 | 12.0-18.0 | 6000 | 1.5S oswa 2.0S | ||
4 | 4.0-7.0 | 6000 | 2.0S oswa 2.5S | ||
5 | 2.8-4.0 | 6000 | 2.0S oswa 2.5S | ||
6 | 2.0-3.0 | 6000 | 2.5 | ||
Lafyev | 8 | N2 | 1.4-2.2 | 6000 | 2.5 |
10 | 1.2-1.7 | 6000 | 3.0 | ||
12 | 1.0-1.3 | 6000 | 3.0S oswa 3.5S | ||
14 | 0.6-0.8 | 6000 | 4.0S oswa 4.5S | ||
16 | 0.4-0.6 | 6000 | 4.5 | ||
18 | 0.3-0.5 | 6000 | 4.5S oswa 5.0S | ||
Pake machin
Faktori Vizite
 | Apre ekip lavant |  | Pwodiksyon gwo twou san fon |
R&D dept
|  | Ekip komesyal |  |
ØCheche gwo twou san fon, pa cheche laje: QY laze toujou dedye a koupe machin laze ki sa nou bon yon
ØKliyan se rezon ki fe la selman nou egziste, nou grandi ak kliyan nou yo ansanm.
ØNou pa selman bay pwodwi laze, men tou, solisyon nan amelyorasyon efikasite pwodiksyon.
ØKi sa nou ofri se bon jan kalite pwodwi segonde ak sevis olye pou yo pri ki ba.
Mesi anpil pou konfyans ou nan QY, epi chwazi QY kom patne ou!!!
